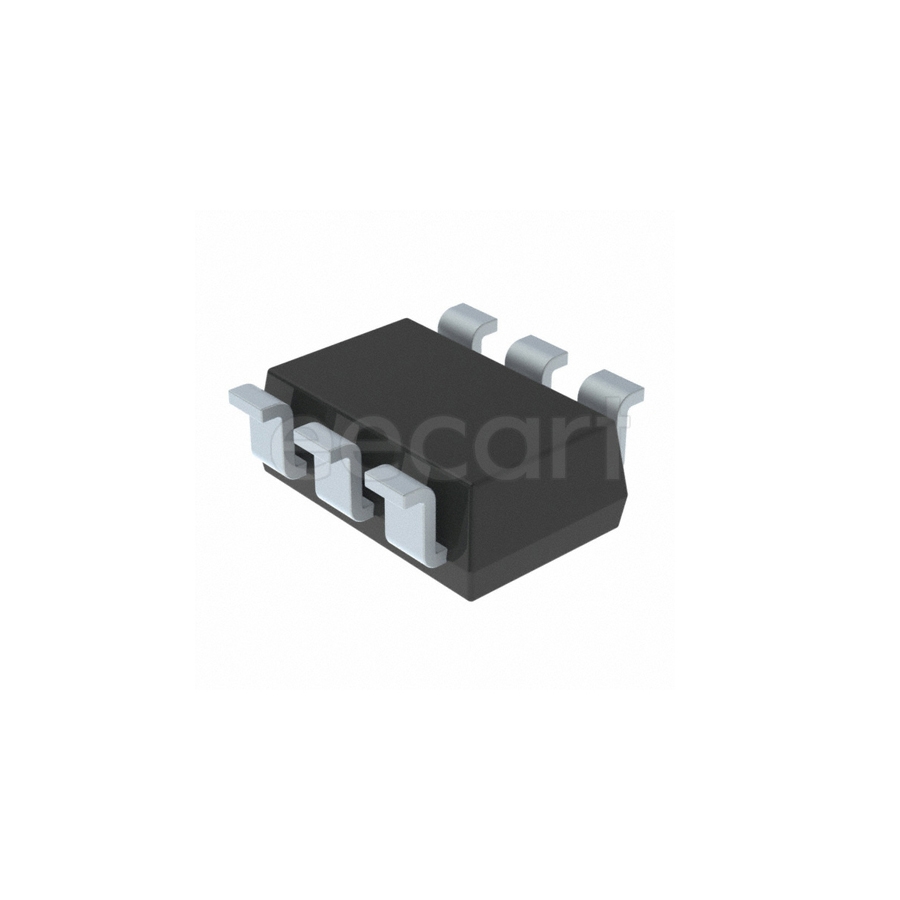

AL5802-7
Manufacturer:
Diodes Incorporated
Mfr.Part #:
AL5802-7
Datasheet:
Description:
LED Drivers SOT-26 SMD/SMT PWM 150 mA
| Parameter | Value |
|---|---|
| Length | 3.1 mm |
| Width | 1.7 mm |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -40 °C |
| Number of Pins | 6 |
| Height | 1.3 mm |
| Radiation Hardening | No |
| Manufacturer Package Identifier | SOT26 (SC74R) |
| REACH SVHC | No SVHC |
| Contact Plating | Tin |
| Min Input Voltage | 4.5 V |
| Output Current | 150 mA |
| Output Voltage | 30 V |
| Output Type | Adjustable |
| Max Power Dissipation | 370 mW |
| Max Supply Voltage | 30 V |
| Min Supply Voltage | 4.5 V |
| Power Dissipation | 1 W |
| Ambient Temperature Range High | 125 °C |
| Number of Channels | 2 |
| Max Supply Current | 120 mA |
| Max Input Voltage | 30 V |
| Number of Outputs | 1 |
| Dimming | PWM |
| Nominal Supply Current | 120 mA |
| Output Current per Channel | 120 mA |
| Max Input Voltage (DC) | 30 V |
| Max Junction Temperature (Tj) | 150 °C |
| Min Input Voltage (DC) | 4.5 V |
| Schedule B | 8542390000 |
| RoHS | Compliant |
| Type | Linear |
| Internal Switch | Yes |
| Packaging | Reel |
Stock: 39953
Distributors
pcbx
pcbxUnit Price$0.14363
Ext.Price$0.14363
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.14363 | $0.14363 |
| 10 | $0.09917 | $0.99170 |
| 50 | $0.08449 | $4.22450 |
| 100 | $0.07198 | $7.19800 |
| 500 | $0.06574 | $32.87000 |
| 1000 | $0.05882 | $58.82000 |
| 3000 | $0.05822 | $174.66000 |
| 5000 | $0.05754 | $287.70000 |
